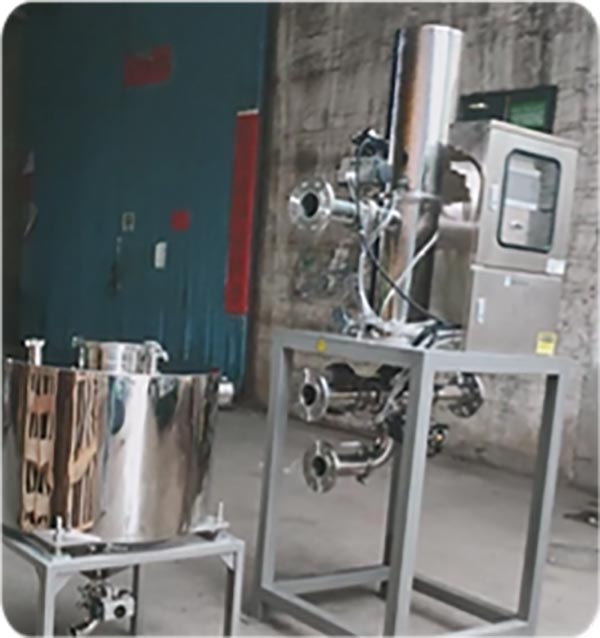

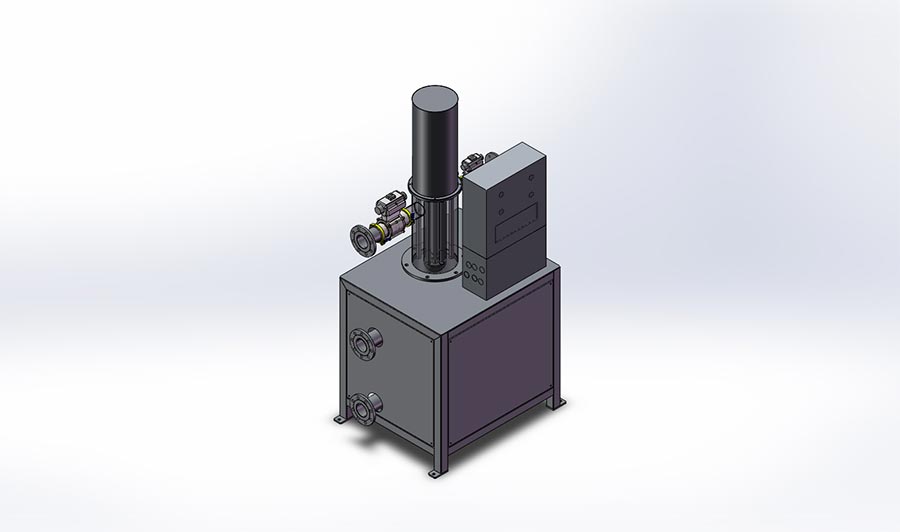

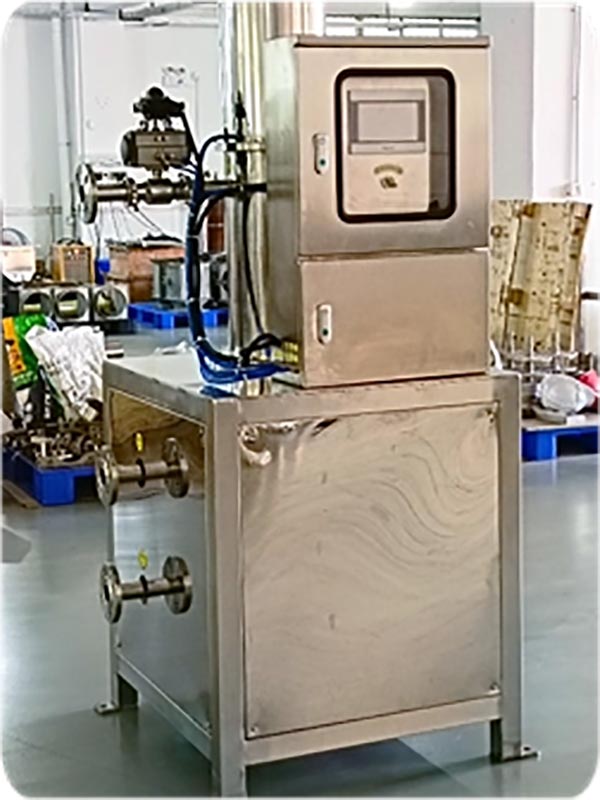

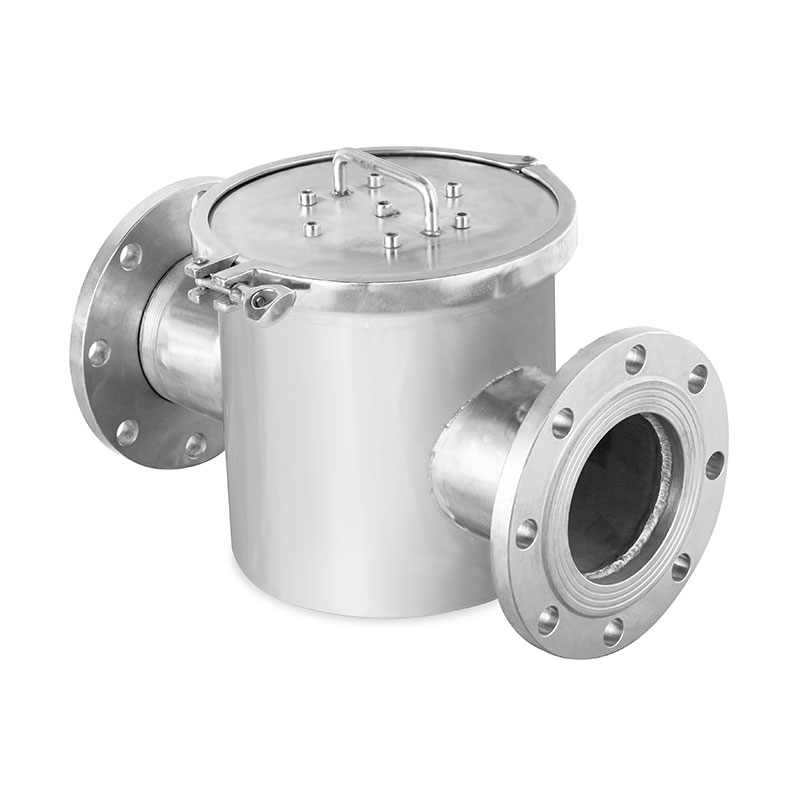

Automatic liquid magnetic separtaor strainer from Force Magnetic Solution provides a highly efficient solution for separating iron particles and stainless powder from liquid or wet materials. Crafted using cutting-edge neodymium magnets, our strainers are meticulously designed to meet the most demanding magnetic separation requirements. Additionally, our automatic liquid magnetic separtaor boast a user-friendly design, ensuring hassle-free installation and maintenance, thus offering a dependable option for a wide array of industrial uses.
The Automatic Liquid Magnetic Separator uses a strong magnetic field to attract and remove ferrous materials from liquids. As the liquid passes through, magnetic rods capture iron particles, and the automatic cleaning system continuously removes these particles using rotating rods or mechanical scraping, ensuring uninterrupted operation. This design reduces downtime and improves efficiency, making it ideal for continuous production lines.
1. Enhanced Magnetic Field: Utilizing NdFeB, our magnetic strainer boasts a magnetic field intensity exceeding 12000GS, guaranteeing exceptional magnetic separation performance.
2. High Pressure Compatibility: With working pressure capabilities surpassing 10 atmospheric pressure, our strainer is ideal for high-pressure applications.
3. Temperature Resilience: Operating within a temperature range of 80-120 degrees Celsius, it maintains consistent performance under varying conditions.
4. Easy Installation: Straightforward installation reduces working intensity and enhances overall efficiency.
5. Customization Options: We tailor our products to meet customers' specific requirements, ensuring a personalized solution for every application.
6. Premium Materials and Finishes: The automatic liquid magnetic separtaor utilizes high-grade materials such as 304 Stainless steel or SUS316L for its pipe construction. Additionally, customers have the option to select a mirror finish for both the interior and exterior surfaces. This not only enhances the aesthetics of the strainer but also ensures durability, making it a reliable choice for various industrial applications.
| Performance Parameters | |
|---|---|
| Material | SUS304 |
| Surface treatment | Internal poblishing and external sandblasting |
| Pressure | 0.6Mpa Sanitary welding |
| Performance | ≥12000GS |

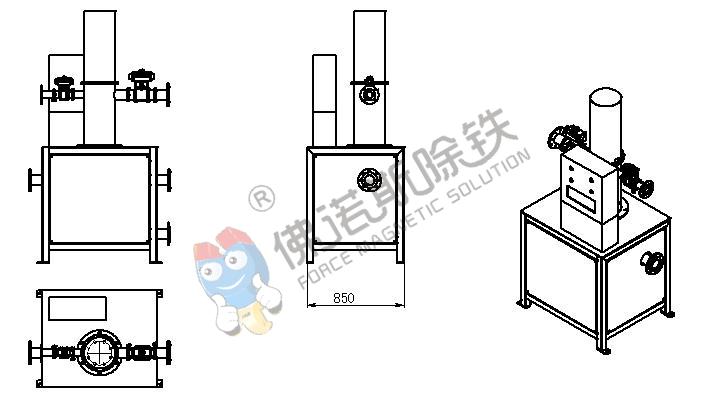

| Diameter | Φ89,Inlet and outlet flanges DN80 PN10-HG/T20592-2009 |
| Standard control system | Pneumatic components:Yadeke,PLC:Siemens |
| Structure | Monocular/Binocular |
| Sealing material | EPDM |
| Capacity | 1-20m³/h |

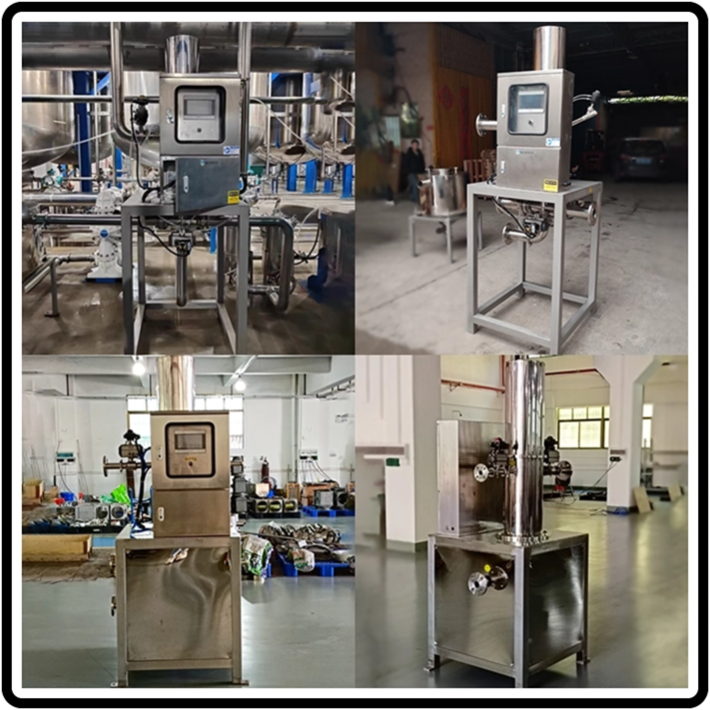

Professional quality exquisite craftsmanship
1. Self-cleaning, no manual intervention required.
2. Can be arranged in series or parallel according to actual needs.
3. Made of full stainless steel material.
