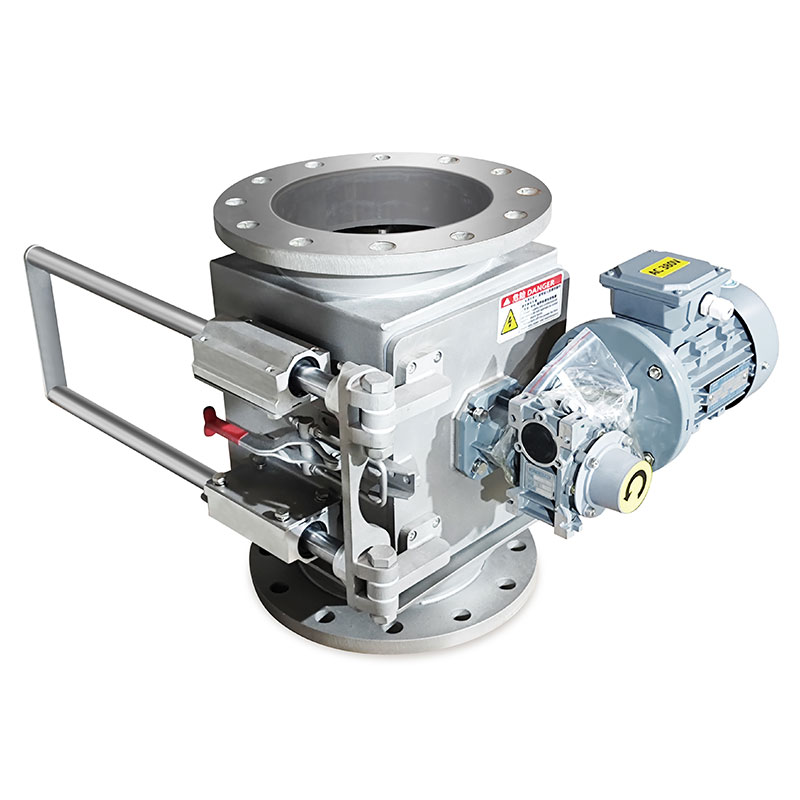

You can rest assured to buy DN200 Magnetic Separator from our factory. Force Magnetic Solution Rotary Grate Magnet Separators find extensive application across various industries including building materials, chemicals, mining, food processing, refractories, and pharmaceuticals. DN200 Magnetic Separator are specifically engineered to eliminate iron contaminants from powdered or granular materials. These separators are particularly effective for materials with high viscosity or poor flowability that tend to clump or form bridges.
The DN200 Magnetic Separator works by rotating magnetic rods installed in the pipeline. These magnetic rods generate a powerful magnetic field that attracts ferromagnetic materials from the flowing material. During operation, the material flows through the area surrounding the magnetic rods, and the rods continuously rotate to prevent the accumulation and blockage of ferromagnetic substances. The rotation of the magnetic rods causes the magnetic field to fluctuate, which enables the efficient and uniform separation of impurities from the material without affecting the flow of the material. In this way, the DN200 Magnetic Separator effectively removes ferrous contaminants while maintaining high production efficiency and a long service life.
1. The rotating magnetic rod can prevent the material from agglomerating and clogging.
2. The internal magnetic bars of the rotary grate magnet separators can be designed as a complete set of tubes, making cleaning more convenient.
3. The feeding and discharging interface of the rotary grate magnet separators can be customized according to the size of the on-site pipeline.
| Performance Parameters | |||||||
|---|---|---|---|---|---|---|---|
| Model | Dimension（mm） | Power（kw） | Magnetic bar qty（pc） | Weight（kg） | |||
| ΦFlange | Flange Length | Flange Width | Height | ||||
| FNS-XZ-159 | 159 | 205 | 208 | 500 | 0.37 | 7 | 43 |
| FNS-XZ-200 | 219 | 257 | 262 | 500 | 0.37 | 9 | 54 |
| FNS-XZ-250 | 273 | 310 | 308 | 580 | 0.37 | 11 | 62 |
| FNS-XZ-300 | 300 | 355 | 358 | 600 | 0.37 | 13 | 72 |
| FNS-XZ-350 | 350 | 405 | 408 | 650 | 0.37 | 15 | 84 |
Professional quality exquisite craftsmanship
1. Quick-disconnect structure for easy installation and cleaning.
2. The magnetic intensity can reach up to 13,000 GS.

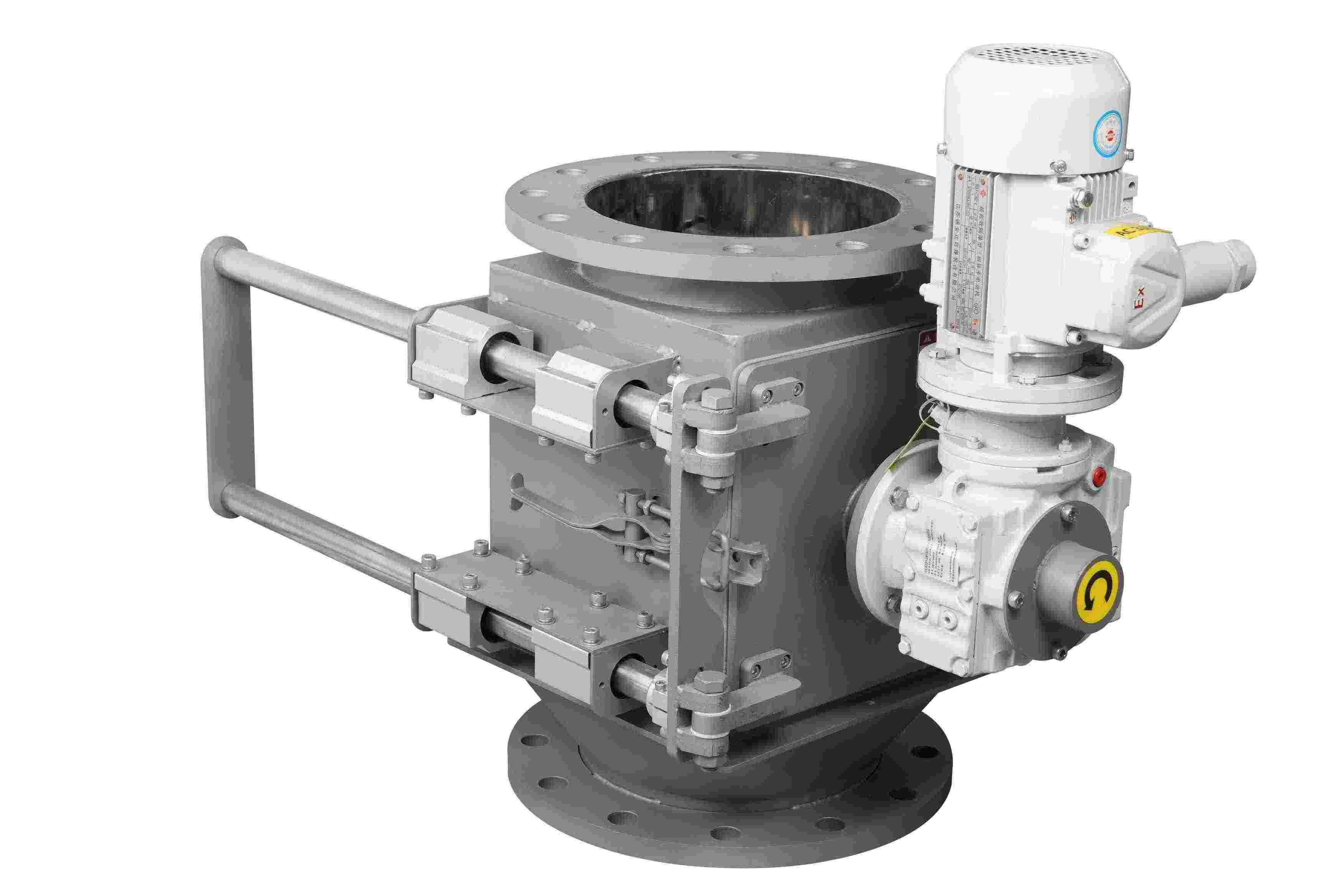

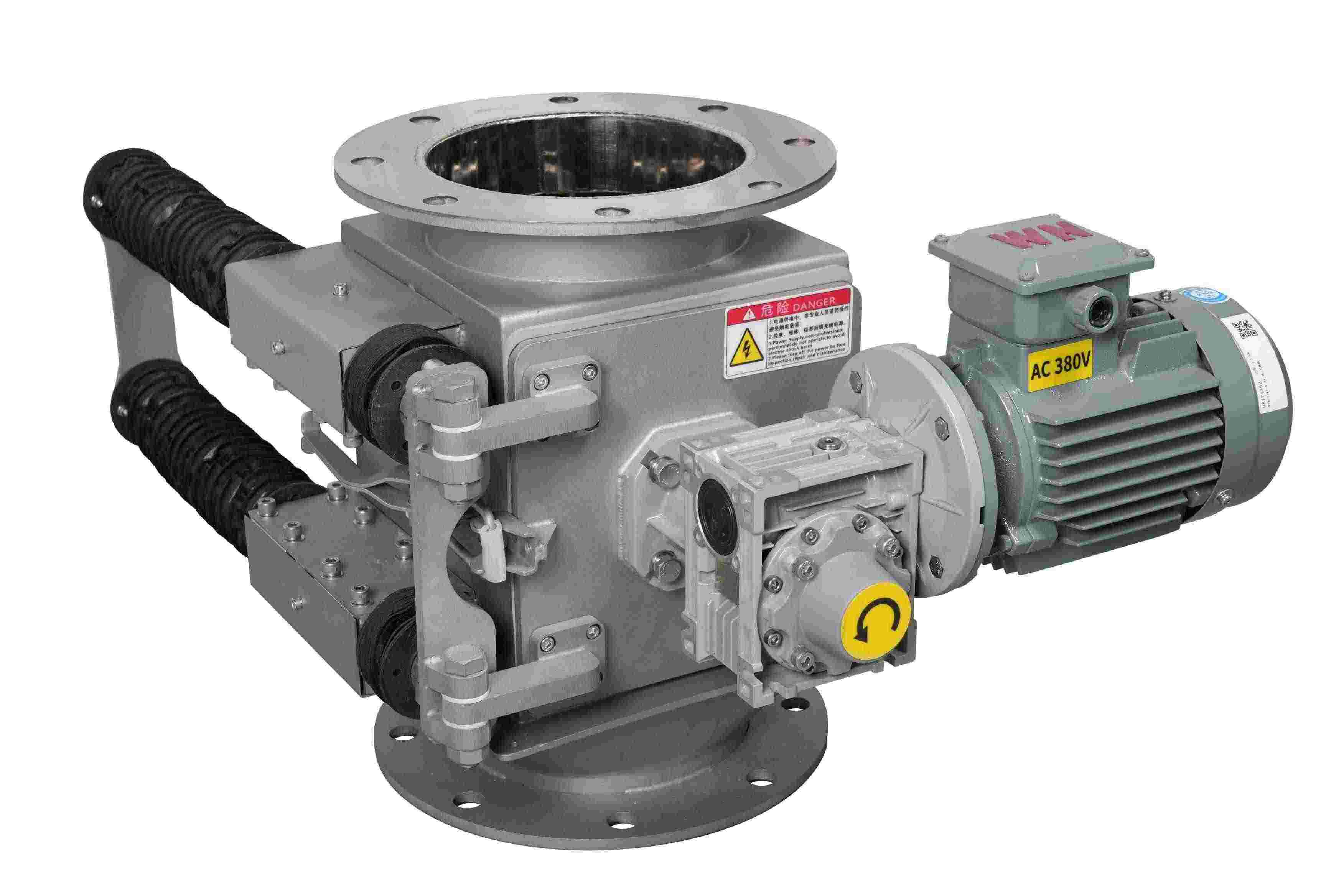

3. An accordion cover can be installed upon request to prevent metal foreign objects.
4. The inlet and outlet can be connected with flanges or clamps, making it easy to install on various pipelines.
5. The surface treatment of the equipment, both inside and outside, can be selected from options such as coating (tungsten carbide PTFE, ECTFE), mirror finish, or sandblasting.
6. The motor can be selected as either an explosion-proof motor or a standard motor (Grade 2 or Grade 3 energy efficiency).
