The Force Magnetic Solution Auto-Shuttle Magnetic Separators are highly effective industrial solutions for the automatic separation of magnetic impurities from dry powder and granular materials. Ideal for refining crucial components like lithium anode and cathode materials, they guarantee efficient and precise removal of contaminants. With their advanced magnetic technology and user-friendly design, these separators ensure product purity and quality, making them a vital addition to any modern manufacturing process.

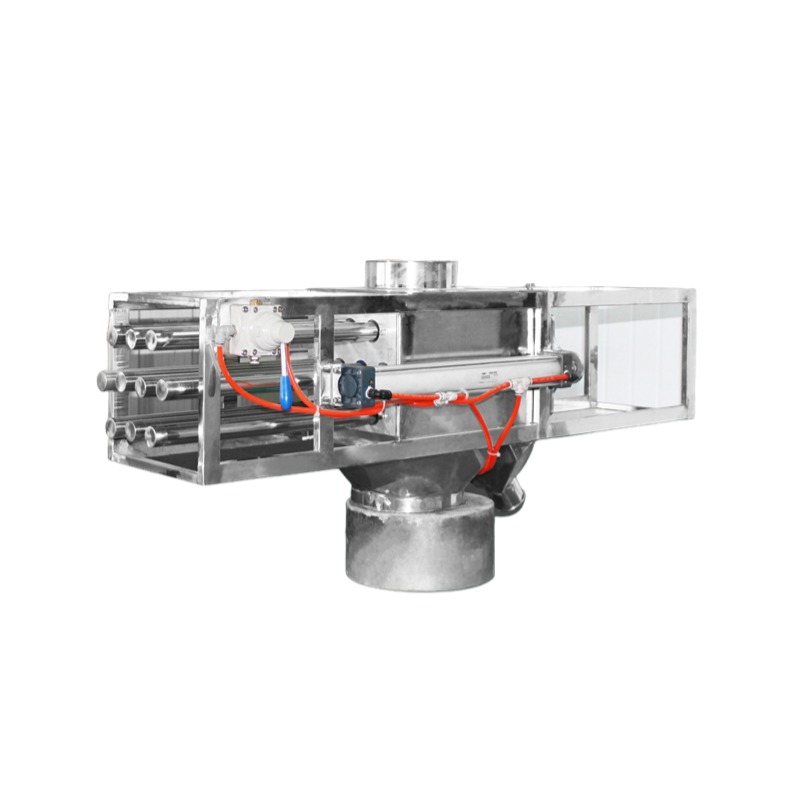

The fully automatic layered drawer magnetic separator uses a multi-layer drawer design to efficiently separate iron impurities. The material enters the equipment through the feed inlet and flows through the different layers of drawers, each containing powerful magnets to attract iron impurities of varying sizes. As the material passes through, non-magnetic substances flow out, while the iron impurities are retained in each layer of drawers. When the iron impurities accumulate to a certain level, the fully automatic cleaning system activates, automatically removing the drawers containing the impurities. The cleaned drawers are then put back into operation, ensuring the continuous and efficient operation of the equipment.
| Performance Parameters | ||||||
|---|---|---|---|---|---|---|
| Model | Material |
Specification （mm） |
Magnetic bar qty（pc） |
Performance （GS） |
Capacity （T） |
Voltage （V） |
| FNS-SGF-4 | SUS304 | Φ26-Φ32 Optional | 18 | 12000 | 10-20 | 220 |
| FNS-SGF-10 | SUS304 | Φ26-Φ32 Optional | 45 | 12000 | 10-20 | 220 |
1.Fully enclosed,no powder leakage,the number of layers can be customized.
2.Automatic deiron,touch screen input program control.
3.Can be 24 hours or more continuous work.
4.Performance up to 12000GS,working temperature≦80℃,maximum working temperature：250℃
1.The unique shuttle mechanism allows for continuous and smooth separation of magnetic impurities from the material flow, minimizing downtime and maximizing production efficiency.
2.These separators are suitable for a wide range of dry powder and granular materials, including crucial components like lithium anode and cathode materials, making them a versatile addition to any production line.
3.The Auto-Shuttle Magnetic Separators are designed for easy integration into existing production lines. Their compact size and modular design ensure smooth installation and operation.
4.The separators feature a simple design that allows for easy access and cleaning of the magnetic surface, minimizing downtime and maximizing uptime.
