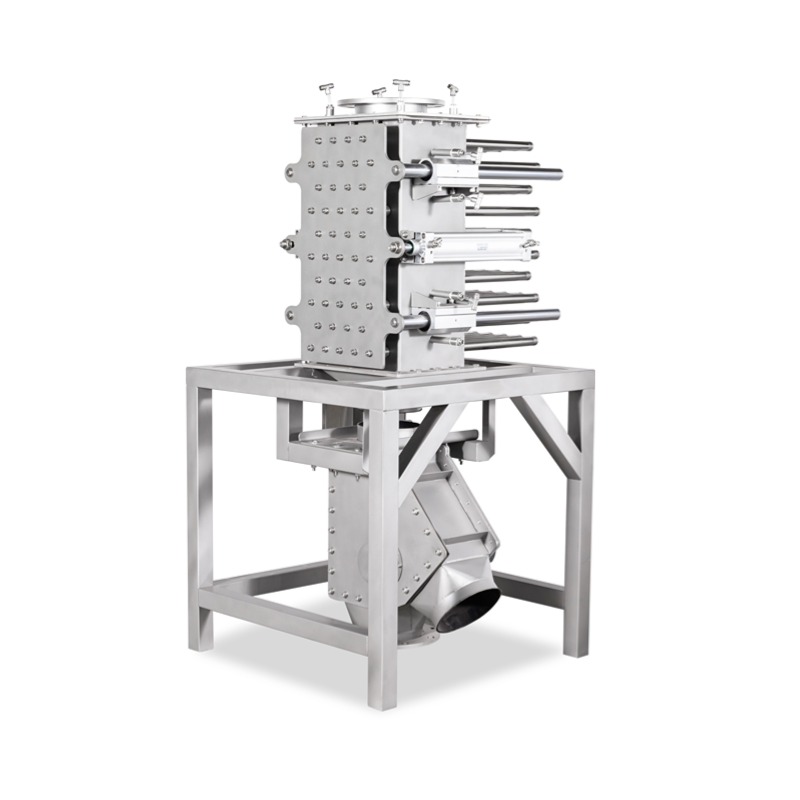

Force Magnetic Solution Enclosed type Magnetic Separation are industrial stalwarts for automatically purifying dry powders and granules, removing magnetic impurities with precision. Crucial for refining lithium anode and cathode materials, they boast advanced magnetic tech and intuitive design, ensuring product purity and quality. These separators are indispensable for modern manufacturing excellence.

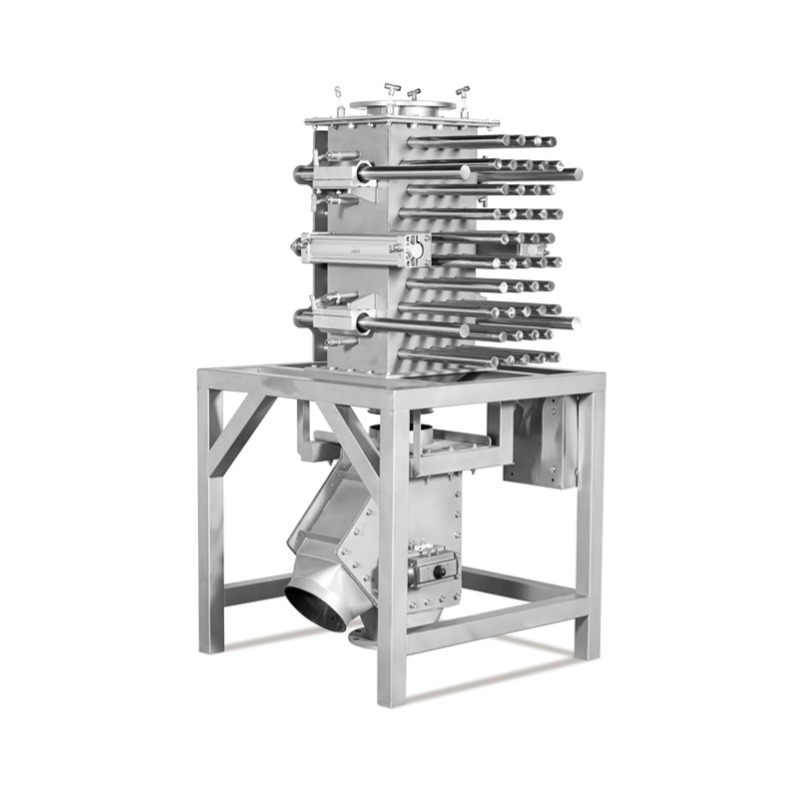

The Enclosed Type Magnetic Separator uses a multi-layer magnetic mesh system to efficiently separate iron impurities from materials. The material enters the device through the feed inlet and flows through multiple magnetic zones of varying intensities. Each layer of the magnetic mesh attracts iron impurities of different sizes based on the strength of the magnetic field, while non-magnetic materials flow through smoothly. The equipment is equipped with an automatic cleaning system, which activates when a certain amount of iron impurities accumulates, removing the impurities from the magnetic mesh and ensuring the equipment operates efficiently without manual intervention.
1. The systems are completely enclosed, minimizing the escape of dust, magnetic particles, or any other contaminants. This not only improves the working environment but also ensures product purity.
2. Made from sturdy materials, the enclosed magnetic separators are designed for long-term use and durability. They can withstand continuous operation and heavy loads with minimal wear and tear.
3. The enclosed magnetic separators are capable of handling large volumes of material efficiently, ensuring continuous and reliable operation even under heavy loads.
4. Utilizing high-performance magnetic elements, the systems provide effective separation of magnetic impurities from dry powder and granular materials. This ensures a high degree of purity in the final product.
| Performance Parameters | ||||||
|---|---|---|---|---|---|---|
| Mosel | Material |
Specification （mm） |
Magnetic bar qty（pc） |
Performance （GS） |
Capacity （T） |
Voltage （V） |
| FNS-SGF-4 | SUS304 | Φ26-Φ32 Optional | 18 | 12000 | 10-20 | 220 |
| FNS-SGF-10 | SUS304 | Φ26-Φ32 Optional | 45 | 12000 | 10-20 | 220 |
Professional quality exquisite craftsmanship

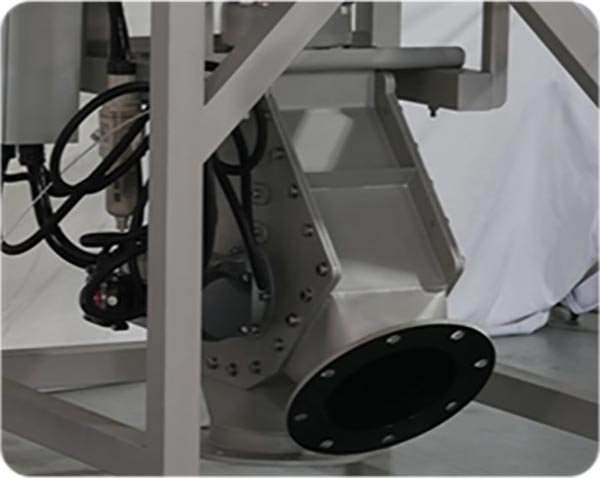

1. The inverted T-shaped discharge hopper prevents powder from accumulating.

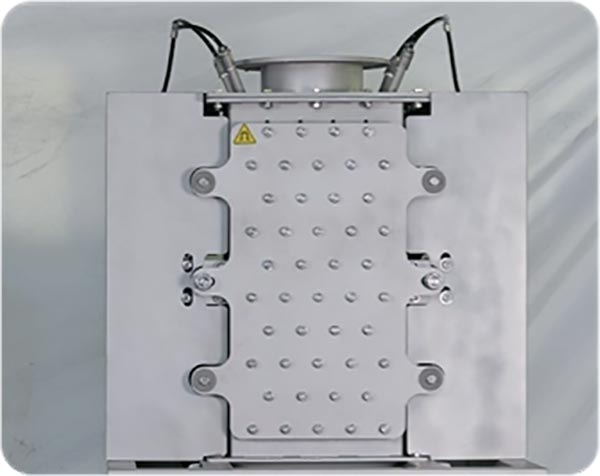

2. Fully enclosed structure to prevent dust dispersion.

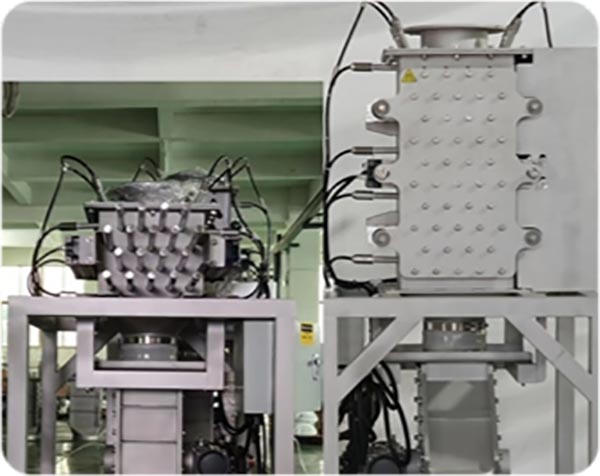

3. The number of layers can be customized based on on-site requirements.

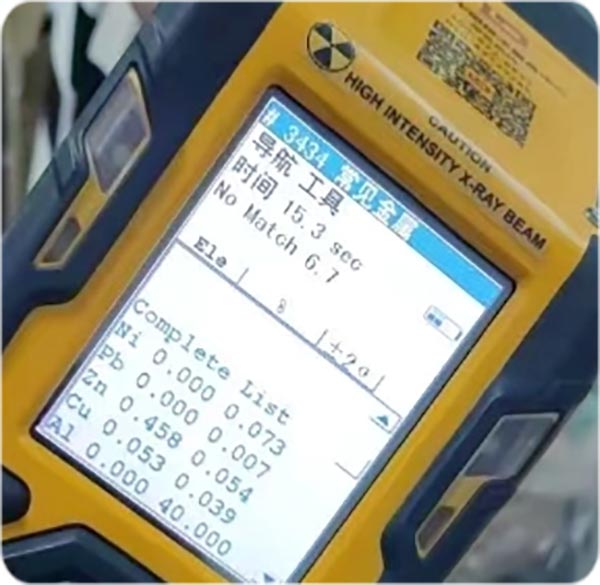

4. The copper and zinc content of the entire machine is within the acceptable range for lithium battery production.
Exterior scene
Workshop 1
Workshop 2
Workshop 3
Office
Warehouse
● High-Tech Enterprise
● Innovative Small and Medium-Sized Enterprise
● Certified ISO9001 Quality Management System
● Member of the Foshan Entrepreneurs Association
● Member of the Nanhai High-Tech Zone Chamber of Commerce
● Member of the Foshan Intellectual Property Association
● Certified China Online Marketing Credit Enterprise
● Outstanding Supplier at the 7th National Quartz Conference
● Dozens of Patented Products Available for Your Selection
Garbage sorting
Pharmaceutical industry
Quartz sand
Mining equipment
Energy and Environmental Protection
Sewage disposal
Battery material
Food industry
Rubber and plastic materials
