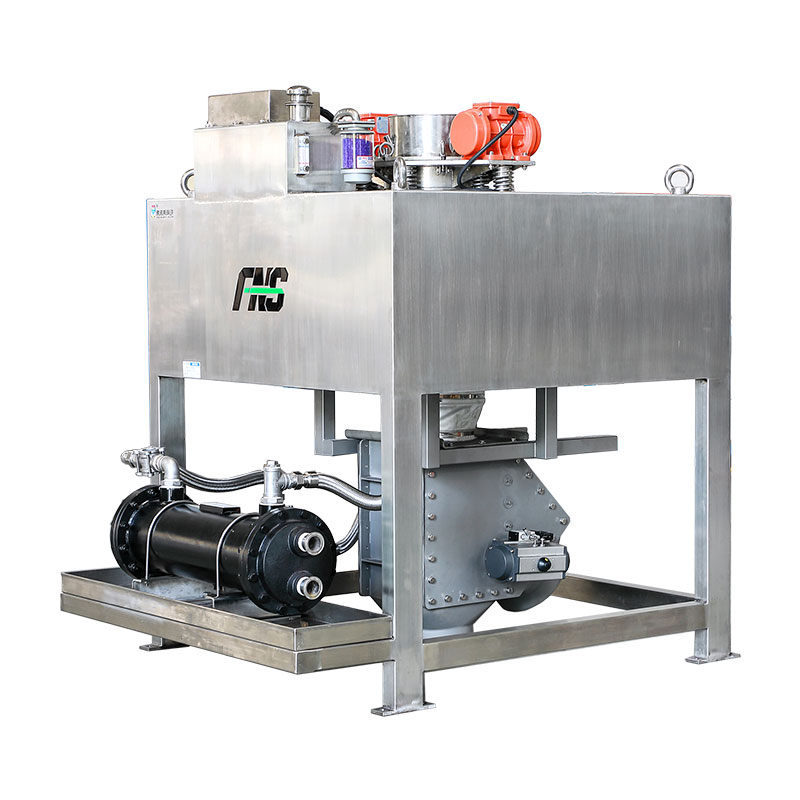

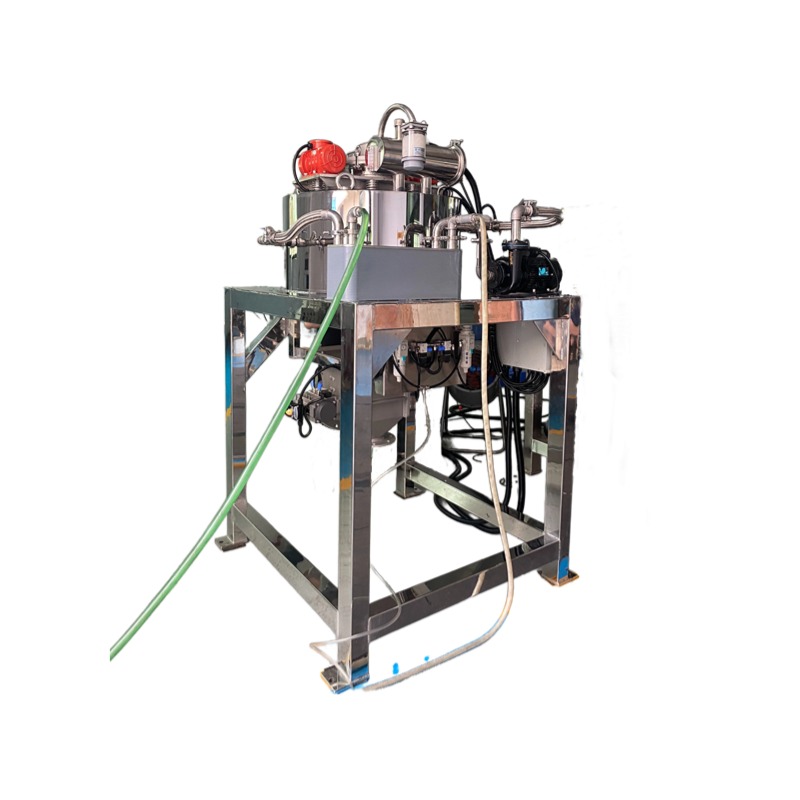

The Force Magnetic Solutions FNS-DF300-10 Dry Electro Magnetic Separator is a versatile tool for separating magnetic materials from non-magnetic ones. Its operation relies on the creation of a strong magnetic field that attracts and removes magnetic impurities from a mixture. Widely applied in industries such as mining, recycling, and food processing, it offers reliable and efficient separation, ensuring product purity and enhancing process efficiency.
The design principle of the Dry Electro Magnetic Separator is based on electromagnetic induction and the magnetic field separation principle. Its core component is the electromagnetic coil, which generates an adjustable magnetic field when energized. The strong magnetic field induced by the electromagnet effectively captures ferromagnetic impurities in dry powder materials.
The specific working process is as follows: when the material passes through the working area of the separator, the ferromagnetic impurities are attracted by the magnetic field and effectively separated, while non-magnetic materials flow out along their regular path. The magnetic field strength can be adjusted according to the material characteristics and operating conditions, ensuring the optimal match between iron removal efficiency and material flow rate. This maximizes the removal of iron contaminants, ensuring the efficiency and safety of the production process.
| Performance Parameters | ||||||
|---|---|---|---|---|---|---|
| Model | Insulation category |
Power （kw） |
Magnetic field （GS） |
Pipe size | Cooling method |
Capacity （L/h） |
| FNS-DCJL-160 | E | 3 | 2000 | Customized | Water and oil dual cooling | 300 |
| 7 | 6000 | |||||
| 10 | 12000 | |||||
| 20 | 14000 | |||||
| FNS-DCJL-250 | 7 | 6000 | 500 | |||
| 10 | 12000 | |||||
| 20 | 14000 | |||||
| FNS-DCJL-300 | 7 | 5000 | 800 | |||
| 10 | 8000 | |||||
| 20 | 13000 | |||||
| FNS-DCJL-430 | 10 | 5000 | 1000 | |||
| 20 | 8000 | |||||
Professional quality exquisite craftsmanship
1. The electromagnetic coil is wound with imported oxygen-free copper wire, featuring low energy consumption, uniform magnetic field distribution, high intensity, excellent stability, and superior iron removal performance.
2. The forced oil-water circulation cooling system ensures excellent heat dissipation. The entire oil-water pipeline is made of stainless steel, guaranteeing system cleanliness and maintenance-free operation.
3. Unique medium mesh design.

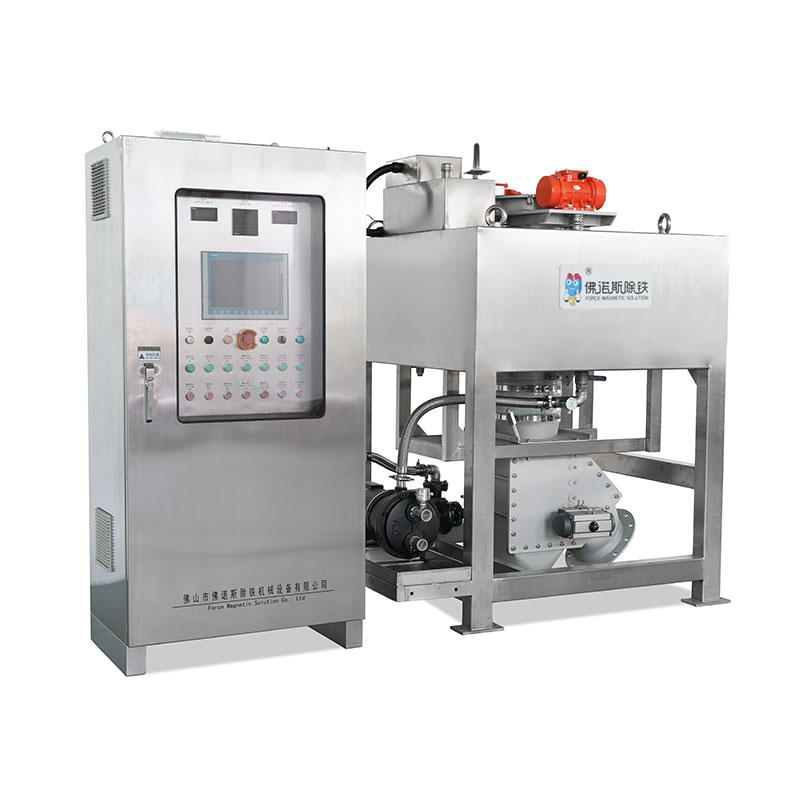

4. Equipped with a dedicated electrical control cabinet, featuring built-in PLC control and a touchscreen for easy, fast, and safe operation, enabling fully automated iron removal, cleaning, and continuous cycle operation.
5. The entire machine is made of 304 stainless steel, offering an elegant appearance, rust prevention, and avoidance of secondary contamination.
6. Equipped with a vibration motor to ensure continuous and uniform material feeding.
7. The inverted T-shaped discharge hopper prevents powder from accumulating.
