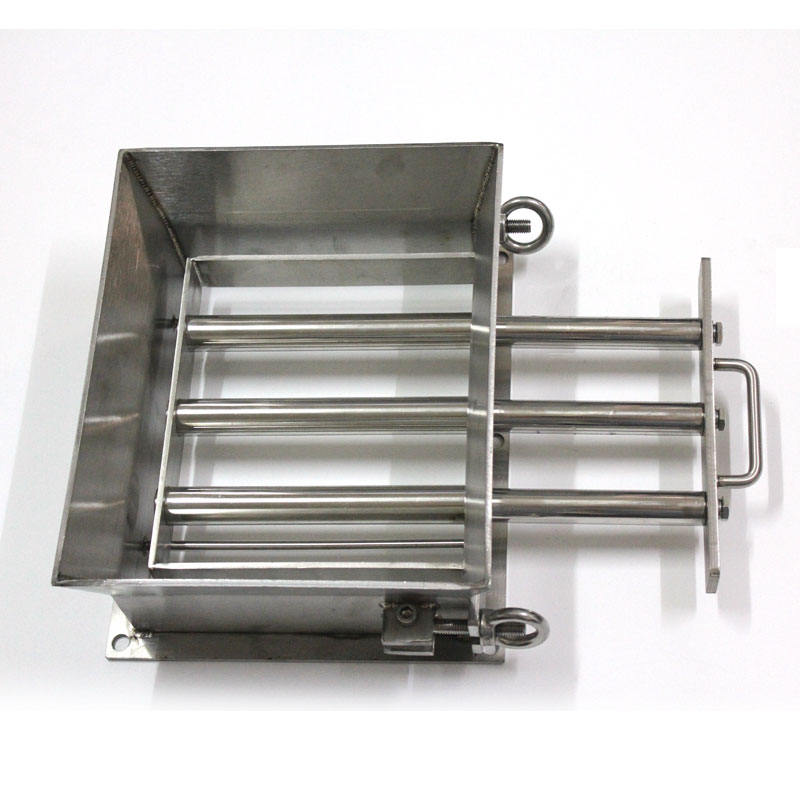

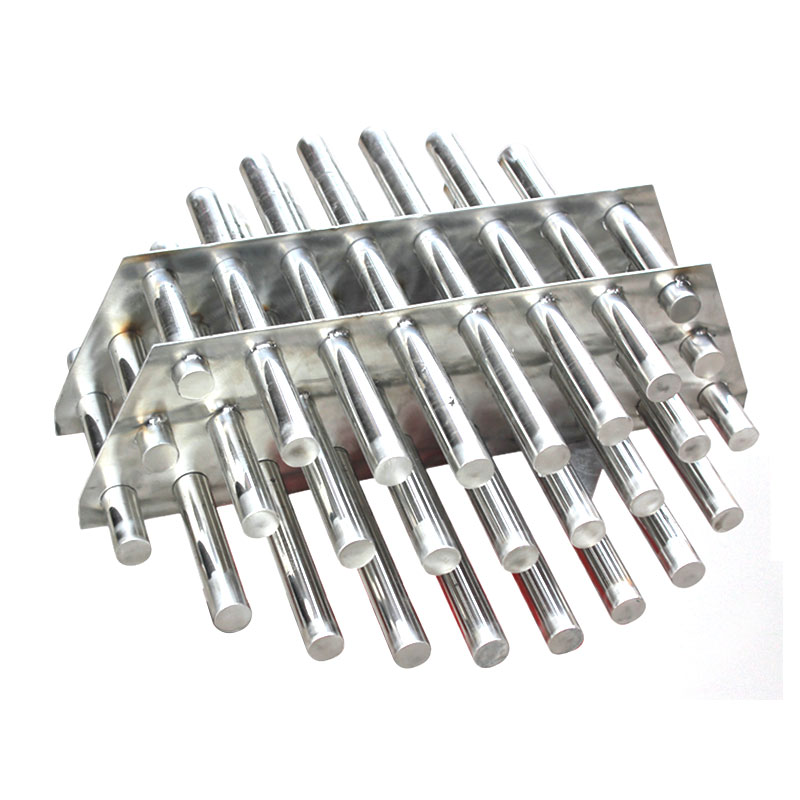

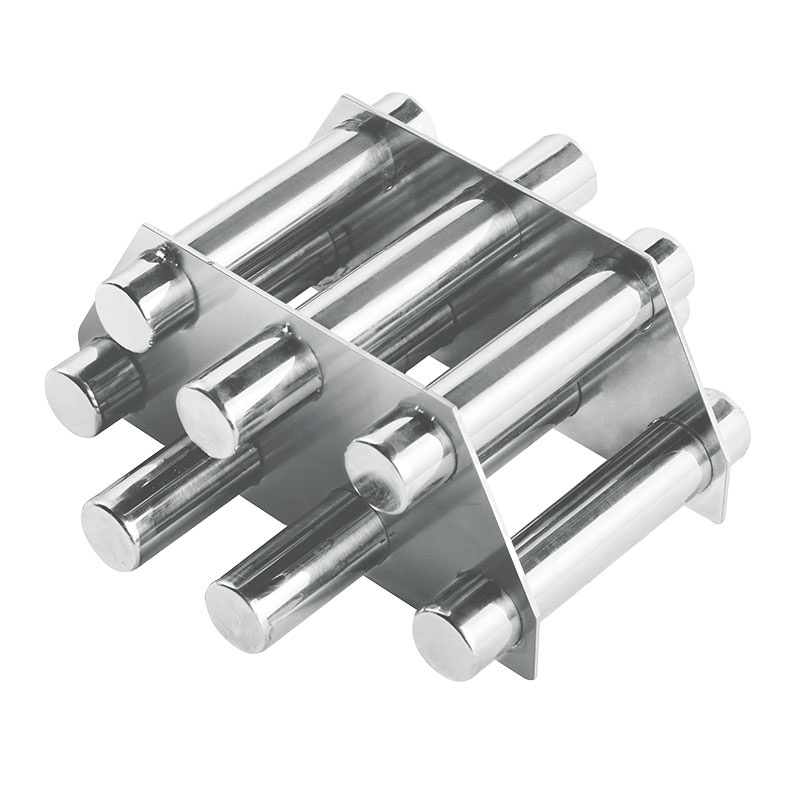

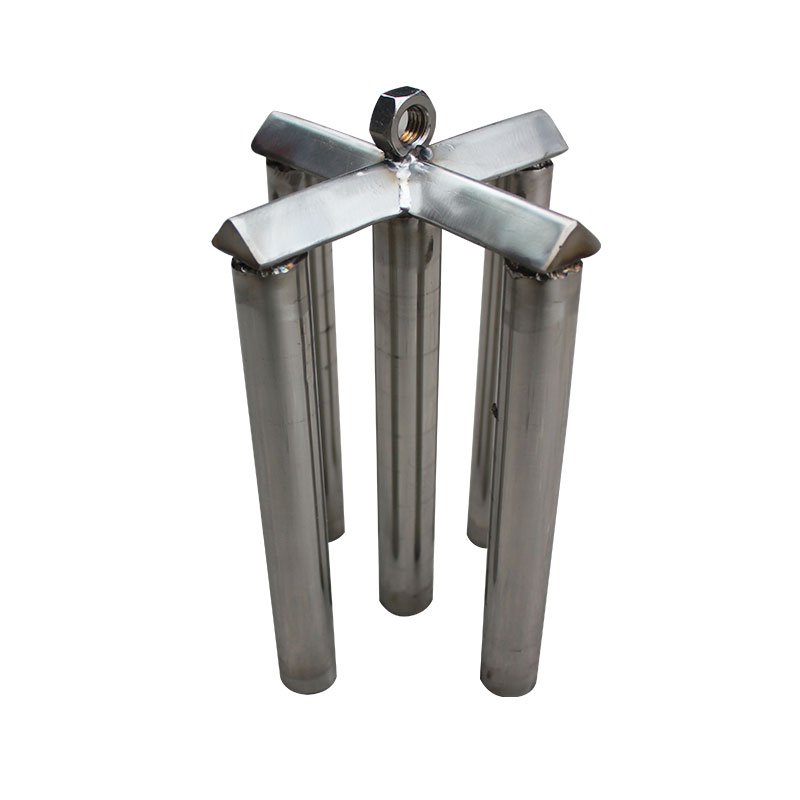

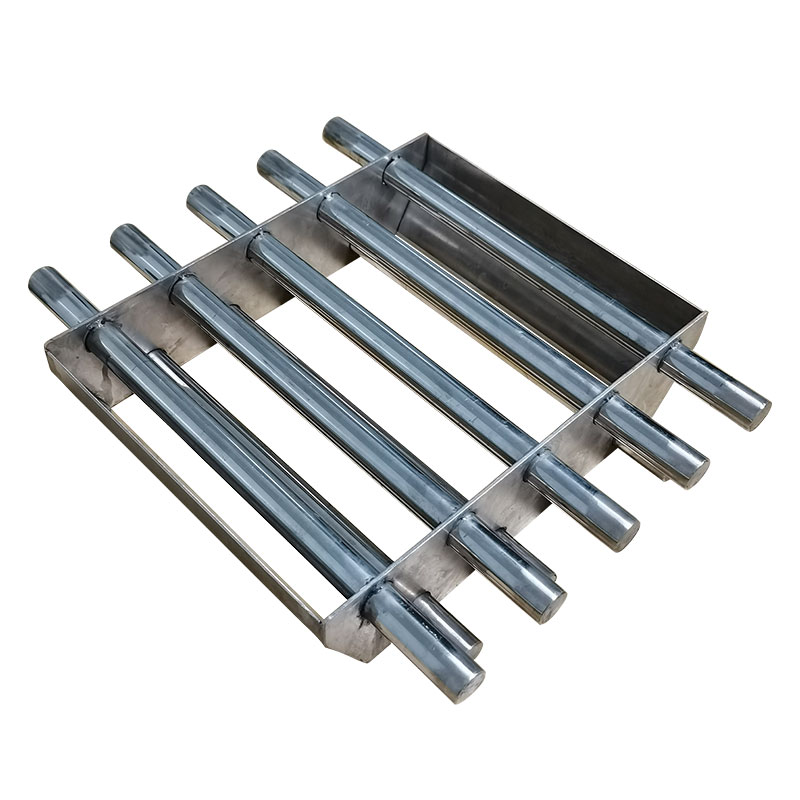

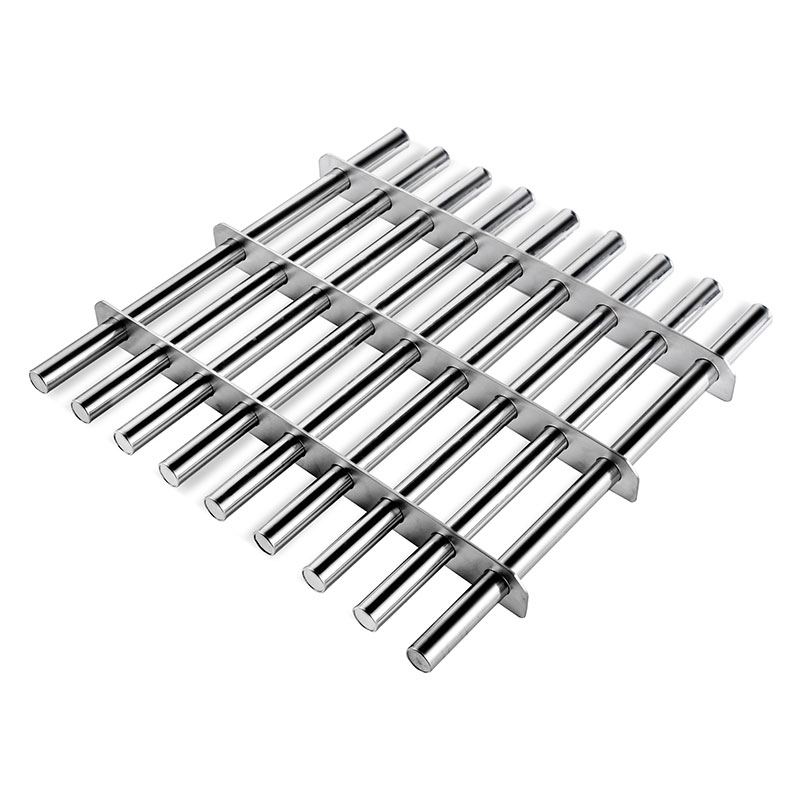

Grate Magnetic Separator

1.Withstands temperatures up to 300°C;
2.High magnetic strength for effective separation of ferromagnetic materials;
3.Customizable to meet specific requirements.

The Grate Magnetic Separator offered by Force Magnetic Solution provides a reliable solution tailored to effectively remove fine iron particles and other minute magnetic impurities from a diverse range of free-flowing powders and granular materials. This includes applications in food, chemicals, plastics, minerals, and more. With a focus on delivering exceptional value, these Grate Magnetic Separators efficiently eliminate harmful tramp metal and reduce levels of ferrous contaminants, all while remaining cost-effective. Engineered with efficiency in mind, their design enables seamless operation within the product flow, negating the necessity for magnetic fields to penetrate significant material depths.


Product Schematic Diagram

Performance Parameters
Model Diameter(mm) Pipe Number Materials Performance(GS)
FNS-CLJ-3 Φ20/Φ22/Φ25/Φ30/Φ32 3 201#/304# 1000-12000
FNS-CLJ-5 Φ20/Φ22/Φ25/Φ30/Φ32 5 201#/304# 1000-12000
FNS-CLJ-7 Φ20/Φ22/Φ25/Φ30/Φ32 7 201#/304# 1000-12000
FNS-CLJ-9 Φ20/Φ22/Φ25/Φ30/Φ32 9 201#/304# 1000-12000
FNS-CLJ-11 Φ20/Φ22/Φ25/Φ30/Φ32 11 201#/304# 1000-12000
FNS-CLJ-13 Φ20/Φ22/Φ25/Φ30/Φ32 13 201#/304# 1000-12000
FNS-CLJ-15 Φ20/Φ22/Φ25/Φ30/Φ32 15 201#/304# 1000-12000
Specification can be customized

Force Magnetic Solution Grate Magnetic Separator Feature And Application

1. Tailored for the removal of ferrous contaminants, the Grate Magnetic Separator from Force Magnetic Solution is purpose-built for integration into storage containers, drawers, and hoppers.
2. Opt for either 304 or 316L stainless steel pipeline materials, ensuring top-tier corrosion resistance and minimal environmental footprint.
3. The Grate Magnetic Separator boasts meticulously polished surfaces on both the frame and magnetic bars, aligning with the stringent hygiene standards of the food and pharmaceutical industries.
4. Experience uninterrupted separation operations with the Grate Magnetic Separator, all while sidestepping any associated operating costs.

Force magnetic Solution Grate Magnetic Separator Details

1. Offering square, rectangular, or circular designs, the Grate Magnetic Separator provides versatile options to meet diverse application needs effectively.
2. Whether installed or positioned within hoppers, pits, chutes, enclosures, or containers, Grate Magnetic Separators ensure effortless accessibility for maintenance and cleaning, facilitating streamlined operational processes.
3. Engineered to withstand standard operating temperatures of up to 80°C, with customizable options available to accommodate maximum working temperatures of up to 350°C, the Grate Magnetic Separator demonstrates adaptability to various operating environments.
