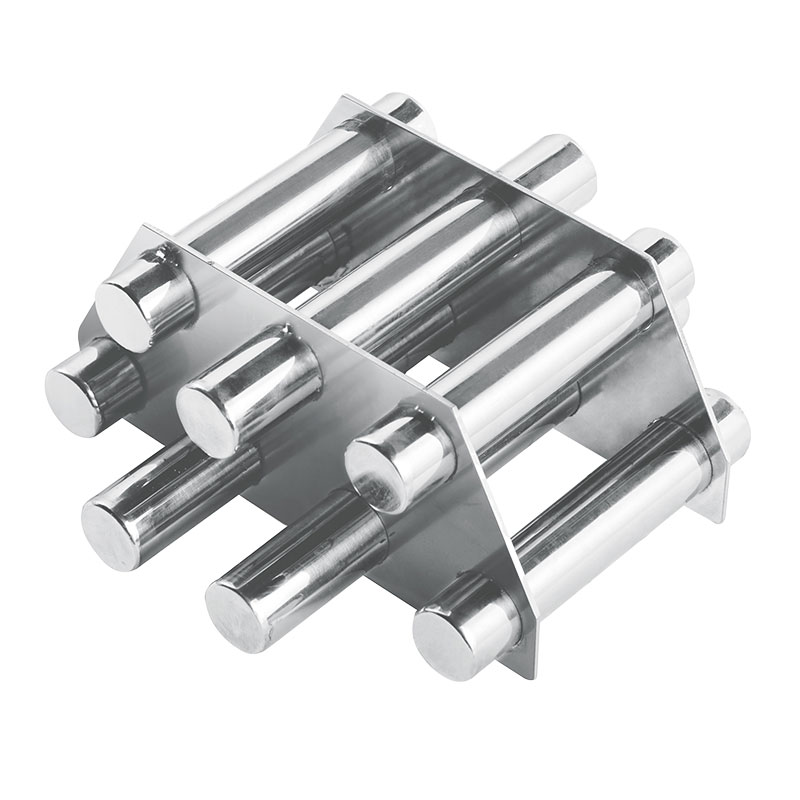

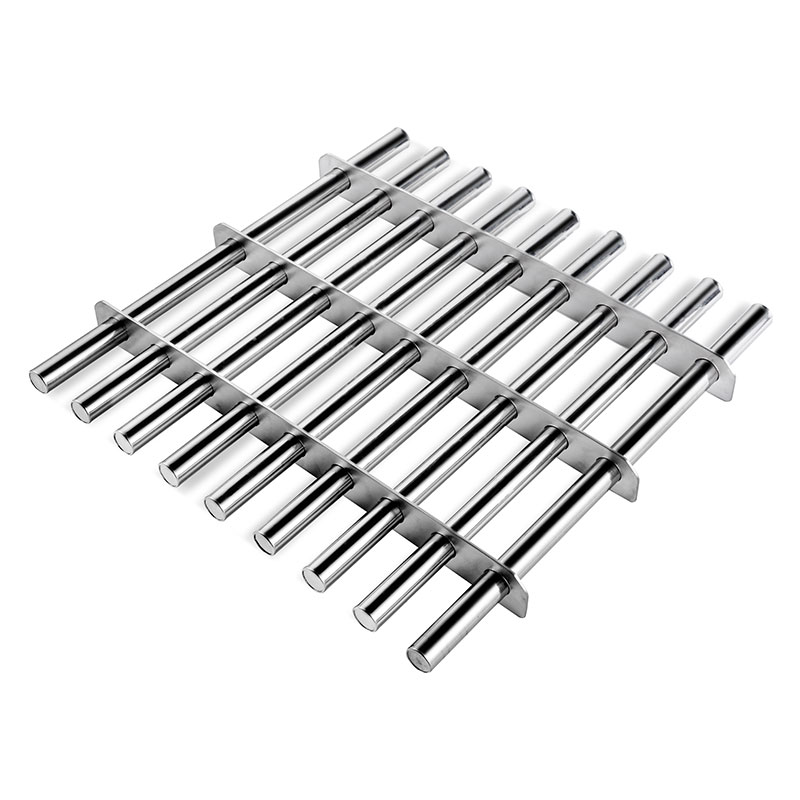

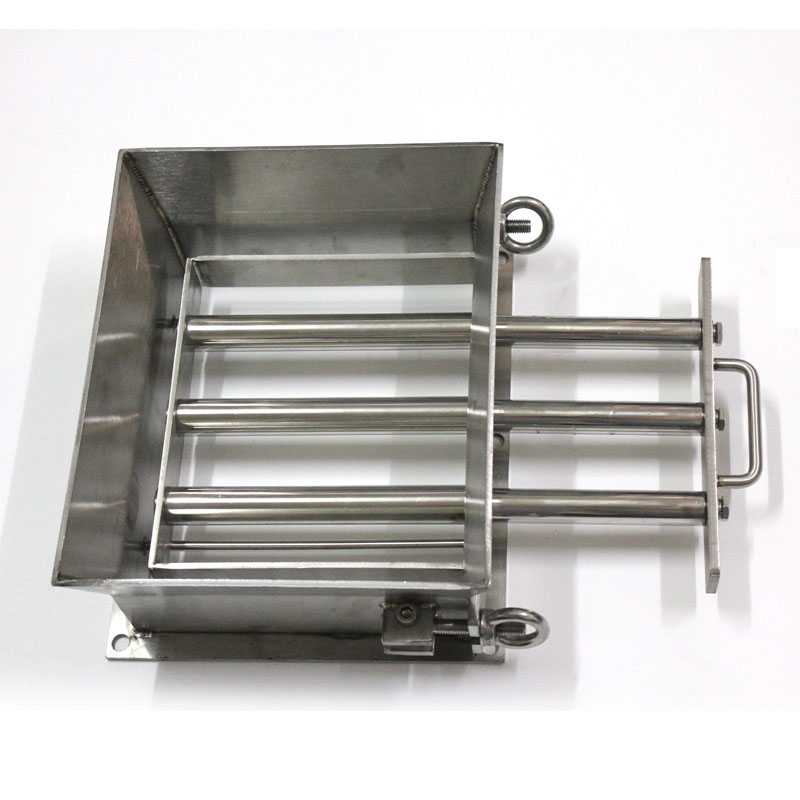

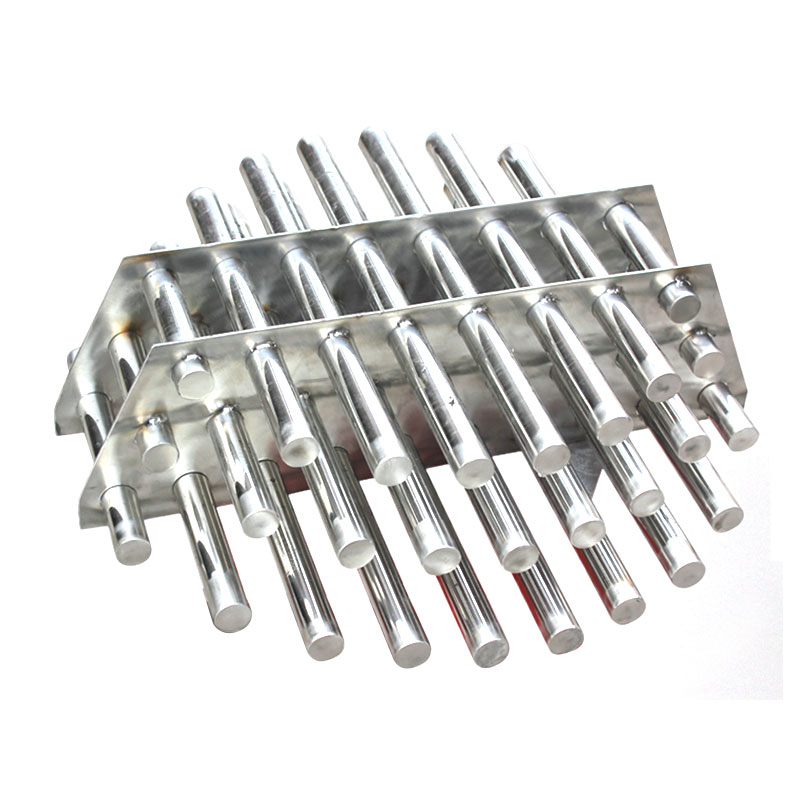

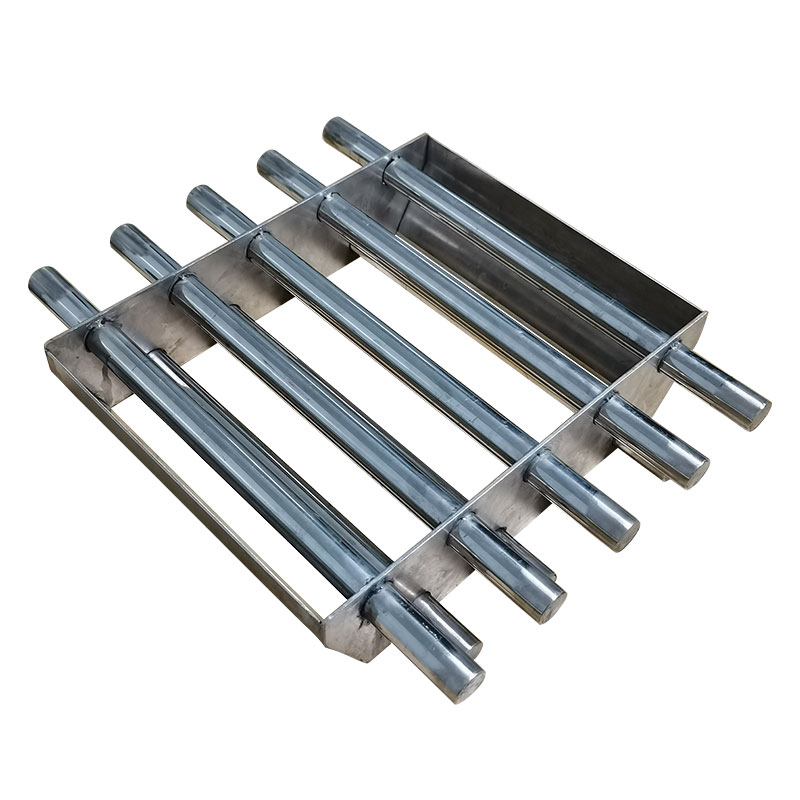

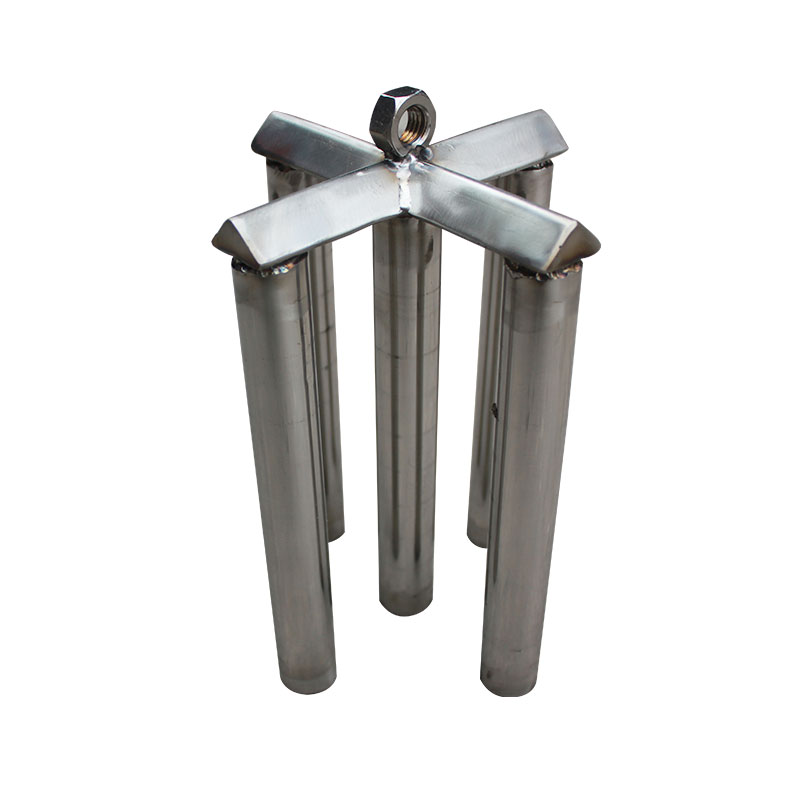

The Magnetic Grids by Force Magnetic Solution is a reliable solution crafted to eliminate fine iron particles and other minute magnetic impurities from various free-flowing powders and granular substances such as food, chemicals, plastics, minerals, and more. Offering exceptional value, these Magnetic Grids effectively eradicate detrimental tramp metal and low concentrations of ferrous contaminants without breaking the bank. Their design ensures optimal efficiency as they operate within the product flow, negating the necessity for magnetic fields to penetrate considerable material depths.
The Magnetic Grid uses a strong magnetic field to attract ferromagnetic contaminants from the material. When the material comes into contact with the magnetic frame, ferromagnetic substances are attracted to the surface of the frame, while non-magnetic materials continue to flow.
1.The Magnetic Grid is designed to eliminate ferrous contaminants from storage containers, drawers, and hoppers.
2. You can choose from 304 or 316L stainless steel options for the pipeline material, ensuring excellent corrosion resistance and minimal pollution.
3. The frame and magnetic bar surfaces of the Magnetic Grids can undergo fine polishing to meet the stringent standards of the food and pharmaceutical industries.
4. Experience continuous separation without incurring operating costs with the Magnetic Grids.
| Performance Parameters | ||||
|---|---|---|---|---|
| Model | Diameter（mm） | Pipe Number | Materials | Performance（GS） |
| FNS-CLJ-3 | Φ20/Φ22/Φ25/Φ30/Φ32 | 3 | 201#/304# | 1000-12000 |
| FNS-CLJ-5 | Φ20/Φ22/Φ25/Φ30/Φ32 | 5 | 201#/304# | 1000-12000 |
| FNS-CLJ-7 | Φ20/Φ22/Φ25/Φ30/Φ32 | 7 | 201#/304# | 1000-12000 |
| FNS-CLJ-9 | Φ20/Φ22/Φ25/Φ30/Φ32 | 9 | 201#/304# | 1000-12000 |
| FNS-CLJ-11 | Φ20/Φ22/Φ25/Φ30/Φ32 | 11 | 201#/304# | 1000-12000 |
| FNS-CLJ-13 | Φ20/Φ22/Φ25/Φ30/Φ32 | 13 | 201#/304# | 1000-12000 |
| FNS-CLJ-15 | Φ20/Φ22/Φ25/Φ30/Φ32 | 15 | 201#/304# | 1000-12000 |
| Specification can be customized | ||||
Professional quality exquisite craftsmanship
1. The shape can be customized as square or round according to the hopper shape and size.
2. The number of layers can be one, two, or three, depending on the requirements.
3. The magnetic strength can be selected as standard magnetic or strong magnetic, depending on the requirements.
4. Clamps can be added or a pull-out, easy-to-clean design can be provided according to requirements.
