Force Magnetic Solution proudly manages its Neodymium magnet factory, with an impressive yearly production capacity of 2,000 tons. Our magnetic tubes, meticulously crafted using these premium magnets, have earned renown for their superior quality and unwavering magnetism. Tailored to efficiently extract iron particles and stainless powder from liquid or wet substances, Force Magnetic Solution's magnetic tubes offer a highly effective solution. Leveraging top-of-the-line neodymium magnets, our separators are intricately engineered to meet the most stringent magnetic separation standards with unparalleled precision and reliability.
| Performance Parameters | ||||||
|---|---|---|---|---|---|---|
| Model | Diameter（mm） | Length（mm） | ||||
| FNS-CB-16 | Φ16 | 300 | 600 | 900 | 1200 | 1500 |
| FNS-CB-20 | Φ20 | 300 | 600 | 900 | 1200 | 1500 |
| FNS-CB-22 | Φ22 | 300 | 600 | 900 | 1200 | 1500 |
| FNS-CB-25 | Φ25 | 300 | 600 | 900 | 1200 | 1500 |
| FNS-CB-32 | Φ32 | 300 | 600 | 900 | 1200 | 1500 |
| FNS-CB-50 | Φ50 | 300 | 600 | 900 | 1200 | 1500 |
| Magnetic filter bar specification can be customized | ||||||
1. Versatile Application: Our magnetic tubes are well-suited for OEM machine build projects, offering adaptability and compatibility across various industrial applications, ensuring seamless integration into diverse systems.
2. Premium Material Options: Constructed from high-quality 304 or 316L stainless steel, our magnetic tubes ensure durability and compliance with the stringent standards of the food or pharmaceutical industry, guaranteeing safety and reliability.
3. Strong Magnetic Field: With magnetic field strength ranging from 4000 to 15000 Gauss, our magnet tubes deliver robust magnetic separation performance, effectively removing iron magnetic impurities from powder, granular, and liquid substances.
4. Wide Temperature Range: Operating temperature ranges from a standard limit of 80℃, with the flexibility to extend to a maximum of 350℃ to suit specific requirements, making them suitable for a broad spectrum of operating environments.
5. Broad Application Spectrum: Our magnet tubes find extensive applications across industries including ceramics, electronics, mining, plastics, chemicals, pharmaceuticals, food processing, metallurgy, and lithium battery manufacturing. They are instrumental in separating iron magnetic impurities from various substances, enhancing efficiency and quality across diverse industrial processes.
1. Versatile End Processing: The processing technology for both ends of the magnet tubes can be tailored to specific requirements, offering options such as fully sealed welding, screw threads and holes, or handle types for convenient installation and operation.

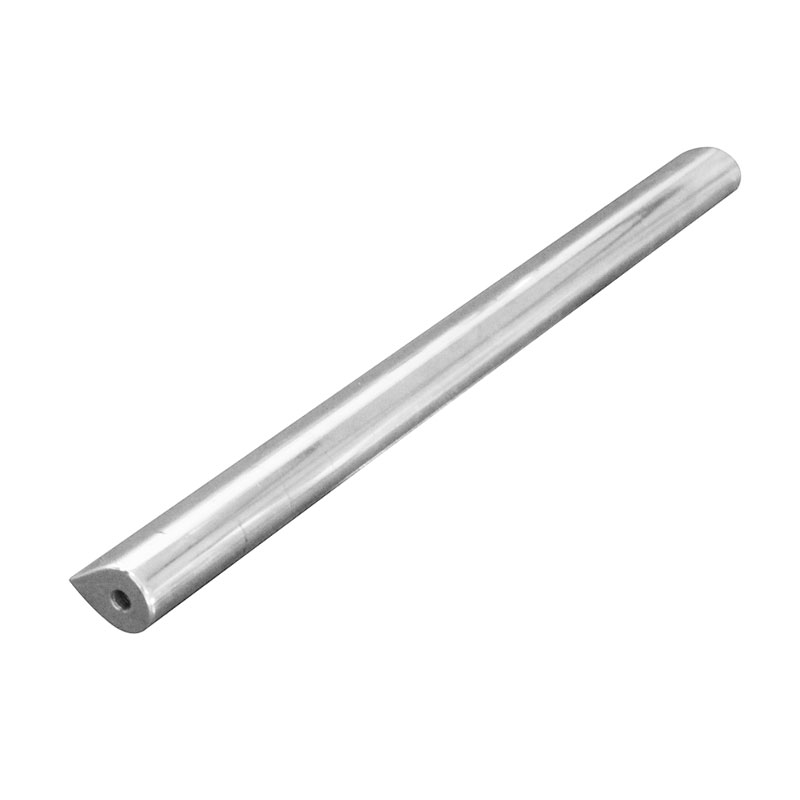

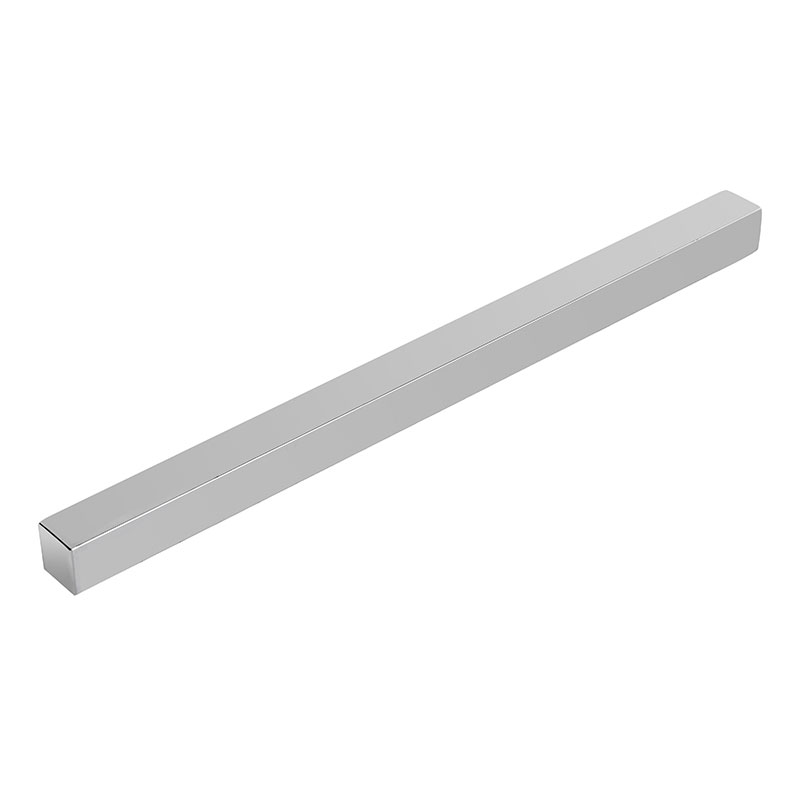

2. Flexible Design Options: Magnetic tubes can be customized into various shapes, including circular, square, and droplet configurations, to suit different on-site installation positions, ensuring optimal performance and seamless integration.
3. Easy Cleaning Process: Depending on the configuration, magnetic tubes can be effortlessly cleaned within seconds by pushing the attracted contamination to one end. This straightforward process releases the contamination, facilitating further analysis with efficiency.
4. Space-Saving Solution: Magnetic tubes are particularly beneficial for engineers contending with space limitations or those seeking customized separator units. They provide a compact alternative to conventional units, making them ideal for installations where space is scarce or for custom-built separator units.
