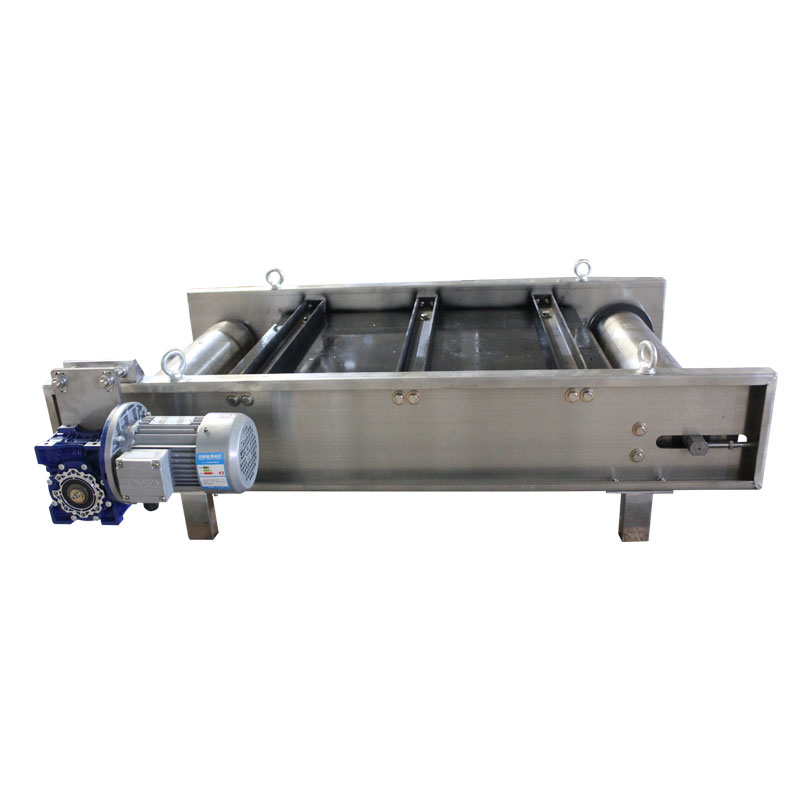

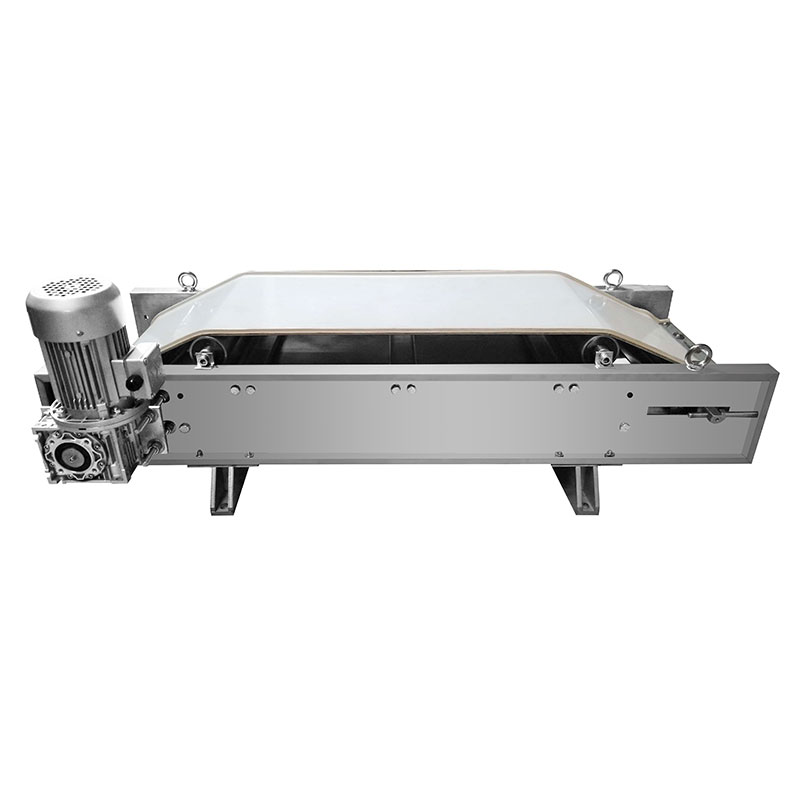

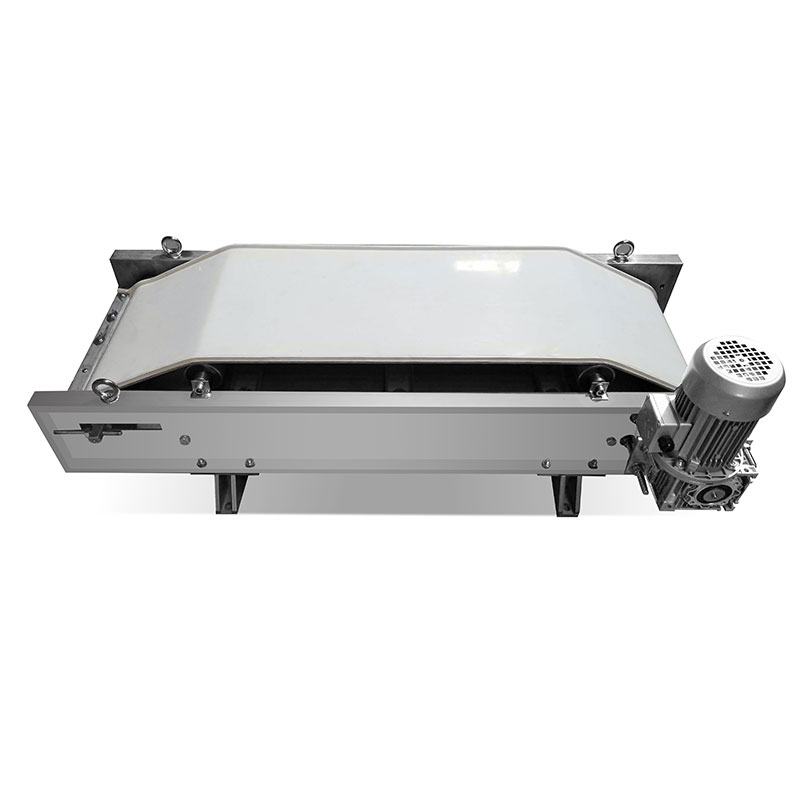

Force Magnetic Solutions Overhead Permanent Magnets lead the market in purifying dry powders and granules. Equipped with a high-performance permanent magnetic core, belts, gear motors, a sturdy frame, and rollers, they seamlessly integrate with conveyors to separate 0.1-45KG ferromagnetic materials. Our separators excel in removing magnetic impurities, essential for lithium battery refinement. With advanced technology and intuitive design, they guarantee pure products for modern manufacturing.
The Overhead Permanent Magnet uses a strong magnetic field to separate ferromagnetic impurities from non-magnetic materials. When the material passes through the suspended separator, ferromagnetic particles are attracted to the magnetic surface, while non-magnetic materials continue to flow through the equipment and are discharged. To maintain the continuous and efficient operation of the equipment, the suspended magnetic separator typically requires periodic cleaning to remove the collected iron impurities.
1.The separator incorporates safety features such as emergency stop buttons and guards to protect operators and equipment.
2.The magnetic poles can be adjusted to optimize separation performance for different material compositions and flow rates.
3.The separator meets or exceeds industry standards for safety, quality, and performance.
4.The separator features a self-cleaning mechanism that prevents magnetic particles from building up on the surface, ensuring continuous and efficient operation.
| Performance Parameters | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model |
Applicative width (mm) |
Rated height (mm) |
Magnetic intensity (mT) |
Thickness for materisls (mm) |
Motor power (kw) |
Speed (M/S) |
Weight (KG) |
Appesrance size L*W*H (mm) |
| FNS-PD-500 | 500 | 150 | 60 | 80 | 1.5 | 4.5 | 750 | 1900*735*935 |
| FNS-PD-650 | 650 | 200 | 70 | 150 | 2.2 | 4.5 | 1200 | 2165*780*1080 |
| FNS-PD-800 | 800 | 250 | 70 | 200 | 2.2 | 4.5 | 1400 | 2350*796*1280 |
| FNS-PD-1000 | 1000 | 300 | 70 | 250 | 3.0 | 4.5 | 2120 | 2660*920*1550 |
| FNS-PD-1200 | 1200 | 350 | 70 | 300 | 4.0 | 4.5 | 3350 | 2900*970*1720 |
| FNS-PD-1400 | 1400 | 400 | 70 | 350 | 4.0 | 4.5 | 4450 | 3225*1050*1980 |
Professional quality exquisite craftsmanship
1. Self-cleaning, no manual intervention required.
2. Can be arranged in series or parallel according to actual needs.
3. Made of full stainless steel material.
Exterior scene
Workshop 1
Workshop 2
Workshop 3
Office
Warehouse
● High-Tech Enterprise
● Innovative Small and Medium-Sized Enterprise
● Certified ISO9001 Quality Management System
● Member of the Foshan Entrepreneurs Association
● Member of the Nanhai High-Tech Zone Chamber of Commerce
● Member of the Foshan Intellectual Property Association
● Certified China Online Marketing Credit Enterprise
● Outstanding Supplier at the 7th National Quartz Conference
● Dozens of Patented Products Available for Your Selection
Garbage sorting
Pharmaceutical industry
Quartz sand
Mining equipment
Energy and Environmental Protection
Sewage disposal
Battery material
Food industry
Rubber and plastic materials
