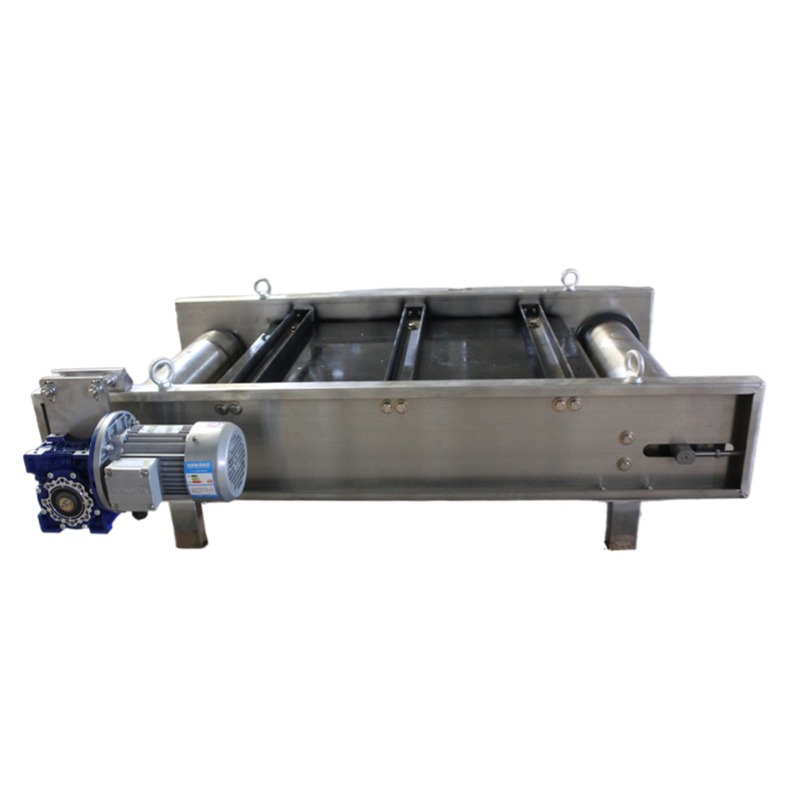

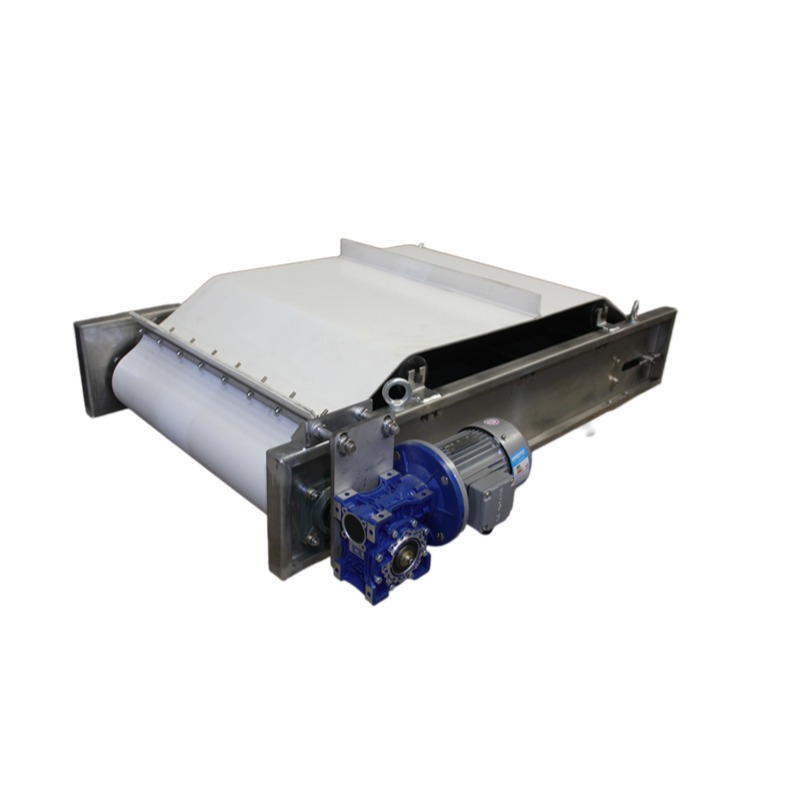

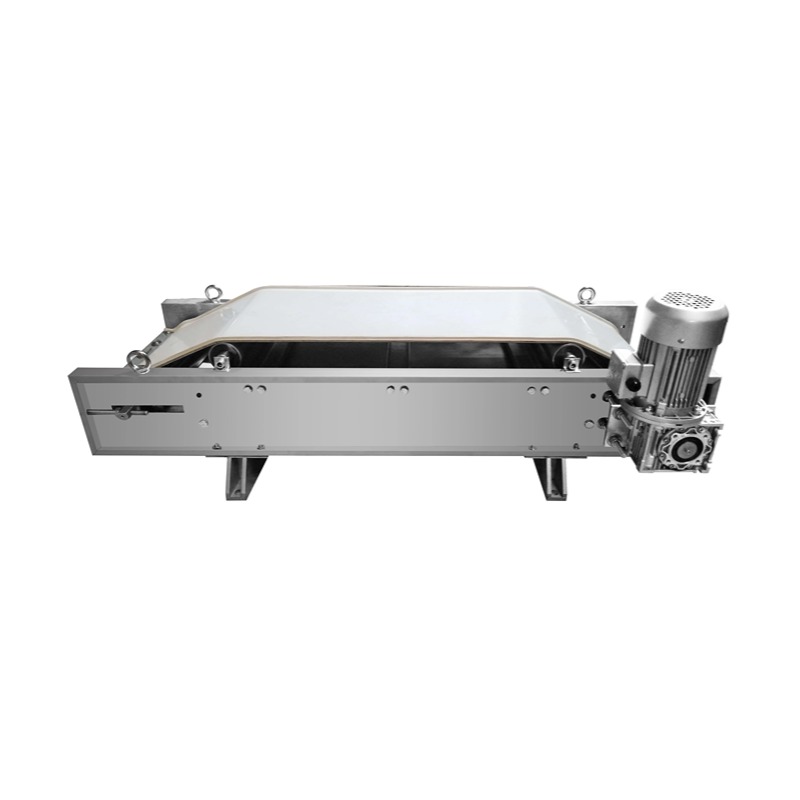

Force Magnetic Solutions Self-Unloading Magnetic Separator are the premier choice for purifying dry powders and granules. It consists of permanent magnetic core with high performance,belt,gear motors,frame,roller etc.It used with various of conveyors for separating automatically 0.1-45KG ferromagnetic materials materials. Our separators efficiently remove magnetic impurities, crucial for lithium anode and cathode refinement. Featuring cutting-edge magnetic technology and intuitive design, they ensure uncompromised product purity. Indispensable for modern manufacturing excellence.
The suspended magnetic separator uses a strong magnetic field to separate ferromagnetic impurities from non-magnetic materials. When the material passes through the suspended separator, ferromagnetic particles are attracted to the magnetic surface, while non-magnetic materials continue to flow through the equipment and are discharged. To maintain the continuous and efficient operation of the equipment, the suspended magnetic separator typically requires periodic cleaning to remove the collected iron impurities.
| Performance Parameters | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model |
Applicative width (mm) |
Rated height (mm) |
Magnetic intensity (mT) |
Thickness for materisls (mm) |
Motor power (kw) |
Speed (M/S) |
Weight (KG) |
Appesrance size L*W*H (mm) |
| FNS-PD-500 | 500 | 150 | 60 | 80 | 1.5 | 4.5 | 750 | 1900*735*935 |
| FNS-PD-650 | 650 | 200 | 70 | 150 | 2.2 | 4.5 | 1200 | 2165*780*1080 |
| FNS-PD-800 | 800 | 250 | 70 | 200 | 2.2 | 4.5 | 1400 | 2350*796*1280 |
| FNS-PD-1000 | 1000 | 300 | 70 | 250 | 3.0 | 4.5 | 2120 | 2660*920*1550 |
| FNS-PD-1200 | 1200 | 350 | 70 | 300 | 4.0 | 4.5 | 3350 | 2900*970*1720 |
| FNS-PD-1400 | 1400 | 400 | 70 | 350 | 4.0 | 4.5 | 4450 | 3225*1050*1980 |
1.It is self-cleaning,widely used and very convenient for maintaining.
2.NdFeb magnet is adopted so that it is with high coercive force and high intensity.
3.Permanent magnets can be customized to specific requirements, including shape, size, and magnetic field distribution. This allows them to be used in a wide range of applications with unique requirements.
4.It uses computer simulation design with double magnetic poles structure.
5.They exhibit stable magnetic performance over time,ensuring consistent functionalith in long-term use.
1.These magnets have a low coercive force, meaning they can be magnetized and demagnetized easily. However, this does not compromise their magnetic stability in normal use.
2.Constructed from corrosion-resistant materials, these magnets can withstand harsh environments and chemical exposure, maintaining their magnetic properties over extended periods.
3.Overhead permanent magnets can be designed with various magnetic field configurations, including unipolar, bipolar, and segmented, to meet specific application requirements.
